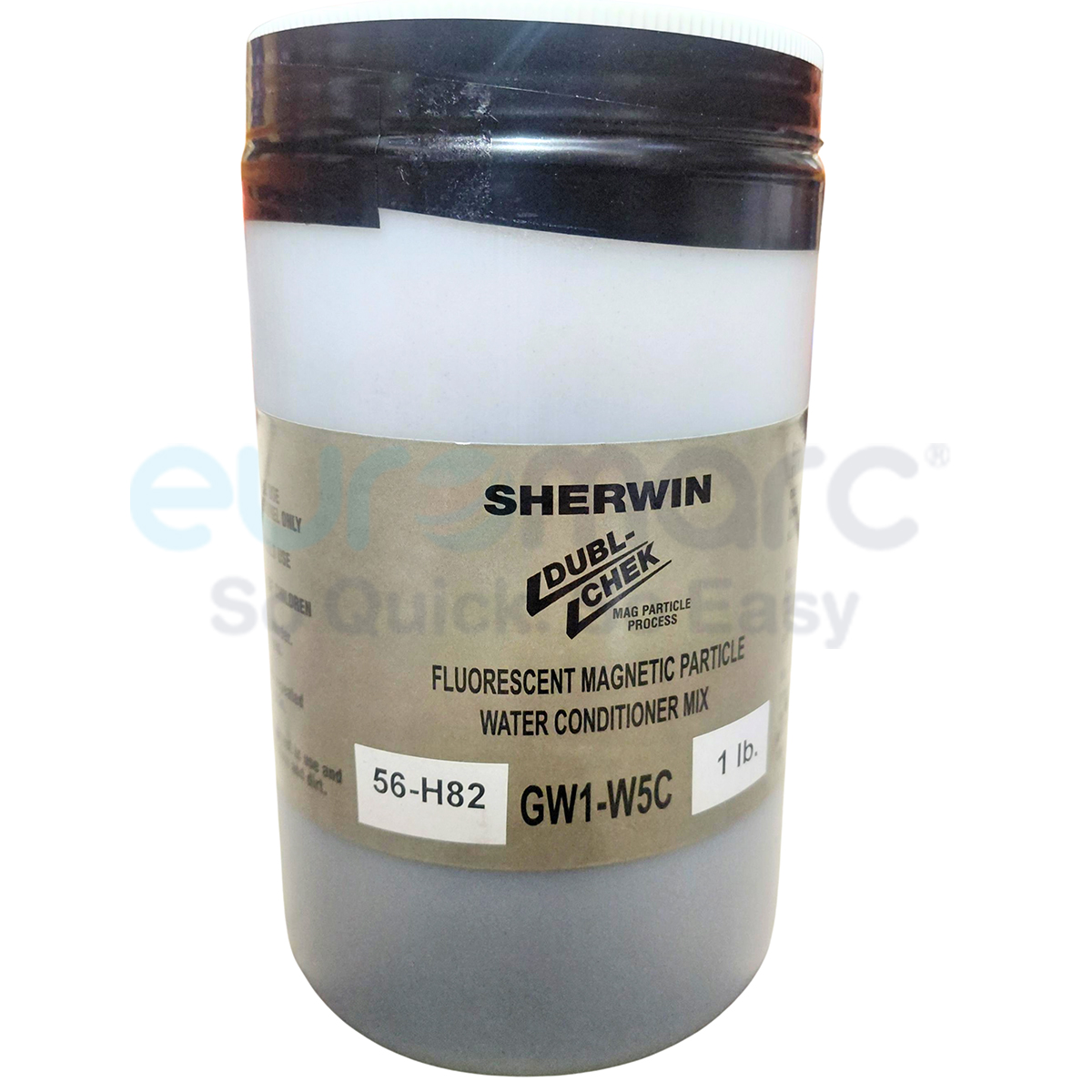

Sherwin GW1-W5C Fluor Magnetic Particle W/C Mix 1Ib

Description
Download
Additional Info

Sherwin GW1-W5C Fluor Magnetic Particle W / C Mix 1Ib is supplied for trade, workshop and industrial use. Sherwin DUBL-CHEK GW1-W5C (Mixed name is GW-8) fluorescent yellow-green particles premixed with powdered Wetting Agent for use in water media. - It is designed to be used with ultraviolet light to detect very fine discontinuities in finished products. - The Wetting Agent is low foaming and has excellent wetting characteristics.

TDS Sherwin (GW8) GW1-W5C.pdf PDF 117.00 B
DUBL-CHEK GW-8 NZ MSDS 20230310.pdf PDF 70.00 B

Sherwin DUBL-CHEK GW1-W5C (Mixed name is GW-8) fluorescent yellow-green particles premixed with powdered Wetting Agent for use in water media. - It is designed to be used with ultraviolet light to detect very fine discontinuities in finished products. - The Wetting Agent is low foaming and has excellent wetting characteristics. - Recommended concentration of 11.5 grams/litre of water. PHYSICALProperties

Particle Colour: Green Florescence: Fluorescent Yellow / Green Specific

Gravity: 0.6 g/ml

Particle Sizes: 1 – 12 µm (average 5µm)

Sensitivity: 8 lines on an AISI 01 Ketos tool steel ring Temperature limit: 0°C to 49°C

Specifications

COMPLIANCE - MIL-STD-1949. AMS 3044. MIL-STD-271. NAVSEA 250-1500-1. NTR-1E. ASTM E1444
